  • Honeycomb vent panel
  • Honeycomb vent panel
Honeycomb vent panelHoneycomb vent panel

Honeycomb vent panel

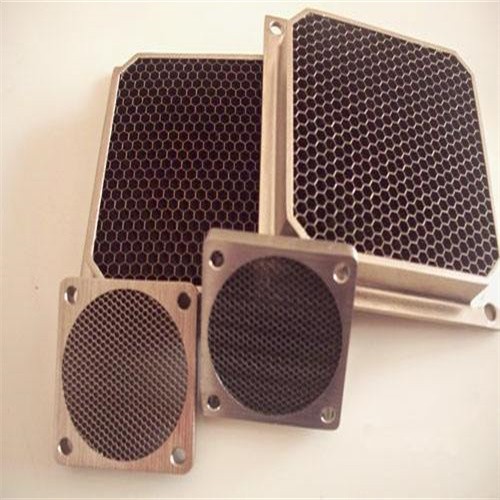

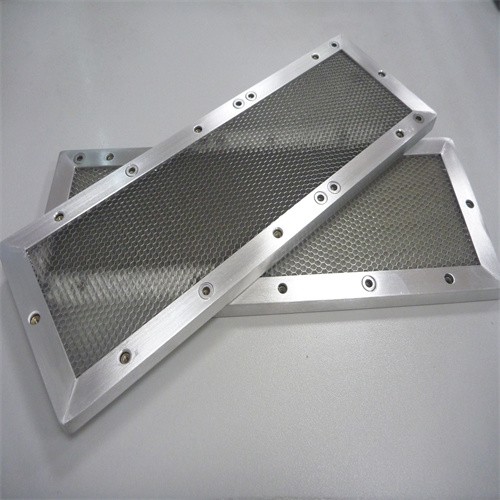

The honeycomb vent panel is widely used for EMI shielding rooms ,shielding box ,shielding racks

We have both aluminum and steel honeycomb vent panel .  The size and shapes could make as customer drawing.  The thickness is from 5mm to 50mm, the cell size is from 1.5mm to 10mm.





Whole aluminum alloy structure, low weight and high-strength

Applied with EMI shielding gasket, easy installation

 Shielding effectiveness of aluminum vent panel

frequency

100KHZ

10KHZ

1GHZ

10GHZ

shielding effectiveness

80 dB

90 dB

90 dB

80 dB





Whole steel or stainless steel honey comb

Applied with EMI shielding gasket, easy installation

Shielding effectiveness of steel vent panels

frequency

14KHZ

100KHZ

100MHZ

450 HZ

1GHZ

10 HZ

18 GHZ

40GHZ

shielding effectiveness

≥100dB

120 dB

120 dB

120 dB

≥120dB

≥110dB

≥100dB

≥90dB
