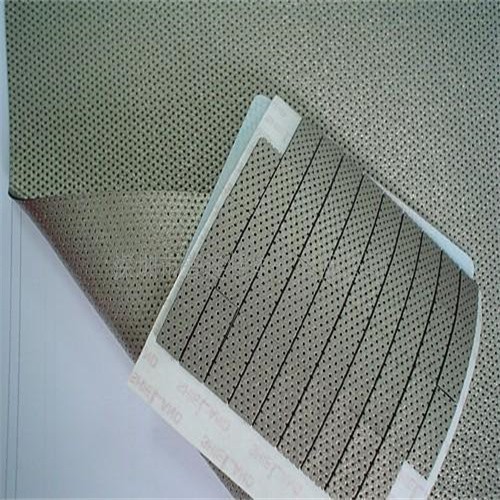

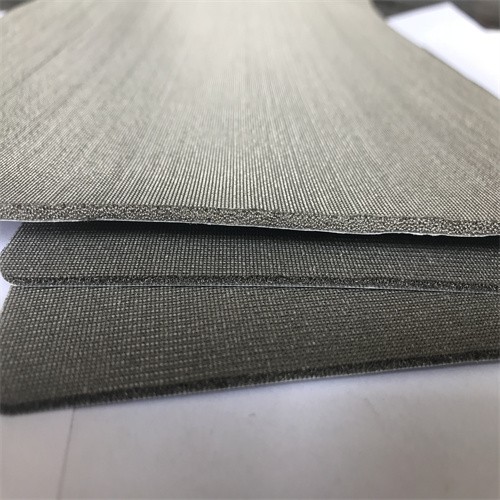

EMI shielding Z conductive foam Using vacuum coating and composite plating method,coating copper and nickle on open cell pu foam and combine with two layer of mesh material. X-Y-Z all sides conductive , very good for customer need z conductive.

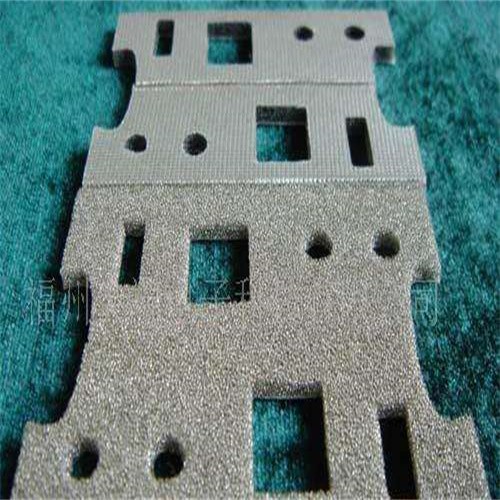

For die cutting,making I/O or D-Sub gasket,and other EMI-RFI shielding gaskets or contacts. It is an economic solution for EMI shielding problems .
We could backing adhesive or die cut for the customers, any other questions,please contact with us.
|
Name |
Type of Materials |
Width （mm） |
Thickness （mm） |
Resistivity (Ω/sq) |
|
CONDUCTIVE FOAM |
PU FOAM |
1000 |
1-3MM |
0.1-0.20 |
|
（Hz） |
Shielding effects（dB） |
electromagnetic wave been shielded ( %) |
||
|
Frequency |
||||
|
14K |
46.3 |
99.999976 |
||
|
500K |
45.3 |
99.99997 |
||
|
300M |
47.4 |
99.999981 |
||
|
5G |
47.7 |
99.999983 |
||
|
10G |
44.9 |
99.999968 |
||
