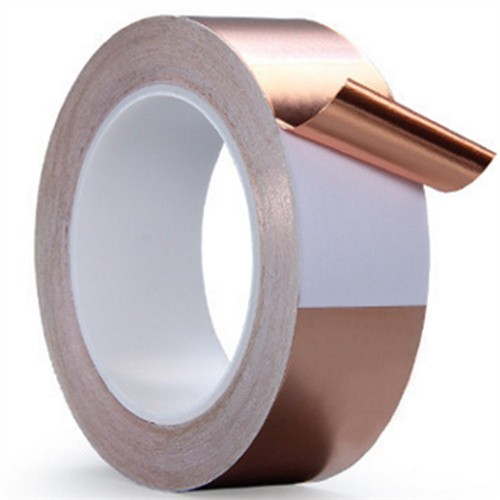

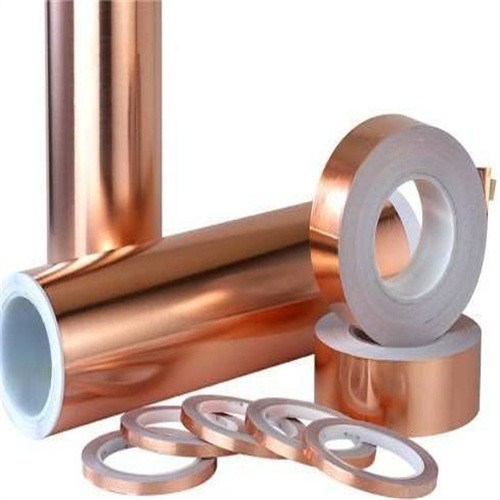

copper foil adhesive tape

Copper foil adhesive tape applications:

· Electrical connection between surfaces (sheets / foils)

· Mounting transparent foils, windows for EMI/RFI shielding

· Shielding in housings and Faraday cages

· Cable shielding (Wrap arround the cable)

· Temporary shielding during emission and immunity tests

· Antistatic floor (ESD floor)

· EMI/RFI shielding (EMI/RFI shielding tape/gasket)

Maxi Width:990mm Maxi Length:100Metre
Adhesive thickness:0.05mm Liner thickness:0.015mm
Copper thickness:0.035mm to 0.1mm Resistivity:Less 0.05ohm/sq
Peel strength :1.6kg/25mm
1.Backing non-conductive adhesive
2.Backing nickle conductive adheisve(<0.03ohm/sq)

Standard length is 25meter or 50meter

We could cut any width as customer request.
